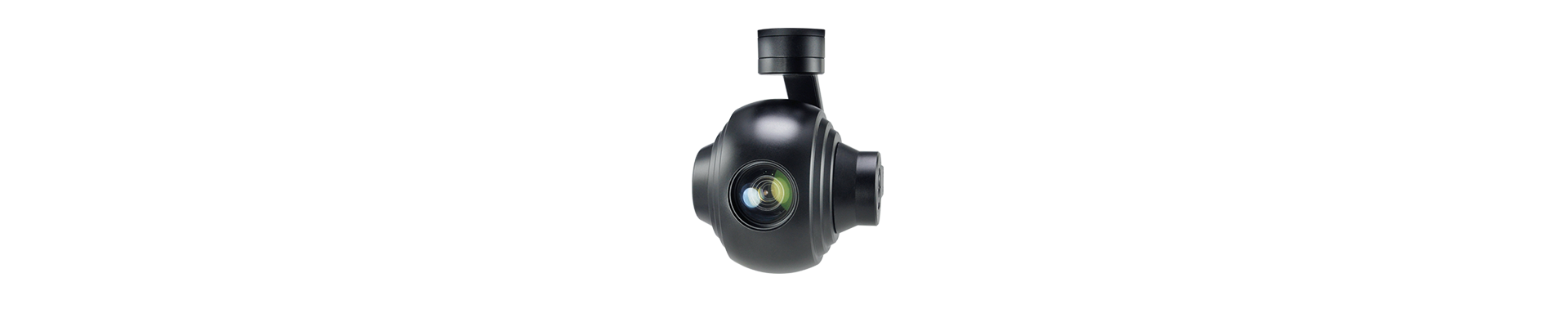

Q10T features 10x optical zoom and auto tracking function. It is a 3-axis gimbal camera for UAV, especially for small drones which require light weight payloads. Alluminum alloy hosing is ideal for light weight meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD. Connected to GPS module it has geo tagging funcion. Combining with high-precise stabilisation system and automatic thermal compensation algorithm, the gimbal can fulfill high level stablization requirements without thermaldrifting.  Q10T 10X Zoom

Q10T 10X Zoom

10x Time Optical Zoom EO Camera



Powered by 10x optical zoom high resolution camera module, Q10T can recognize cars in 1000 meters, which can meet the application requirementsofvariousdomains.Q10T 10X Zoom

Q10T 10X Zoom





Built-in Auto-tracking Function



Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.











Multi Output Methods Optional



Q10T support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

                                    Q10T 10X Zoom

                      Q10T 10X Zoom  Q10T 10X Zoom

Multi Control Methods



Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

                                                         Q10T 10X Zoom

Control box signal interfaces:





Compatible with Viewport



Q10T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Q10T 10X Zoom  Q10T 10X Zoom  Q10T 10X Zoom

For more information about Viewport, please check below video instruction:







Applications



Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties

                                            Q10T 10X Zoom





                              Dimensions



Q10T 10X Zoom  Q10T 10X Zoom





Specifications



Hardware Parameter

Working voltage

12V

Input voltage

3S ~ 4S

Output voltage

5V (connect with PWM)

Dynamic current

320mA  @ 12V

Idle current

240mA @ 12V

Power consumption

≤ 3.85W

Working environment temp.

-20℃ ~ +50℃

Output

micro HDMI(HD output 1080P 60fps)/IP

Local-storage

SD card (Up to 128G, class 10, FAT32 or ex FAT format)

Control method

PWM  / TTL / S.BUS / TCP

Gimbal spec

Pitch/Tilt

±90°

Roll

±85°

Yaw/Pan

±300°/±360°(IP output)

Vibration angle

Pitch/Roll: ±0.02°, Yaw±0.03°

One-key to center

Camera spec

Imager Sensor

1/3inch CMOS

Picture quality

Full HD 1080 (1920*1080)

Effective pixel

2.13MP

Lens optical zoom

10x, F=4.9~49mm

Digital zoom

12x (360x with optical zoom)

Min object distance

1.5M

Horizontal viewing angle

Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end)

Vertical: 39.8°(wide end) ~ 4.2°(tele end)

Focus: 66.6°(wide end) ~ 7.2°(tele end)

Sync system

Progressive scanning

S/N ratio

38dB

Min illumination

Color 0.05lux@F1.6

Exposure control

Auto, Manual, Priority mode(shutter priority &

 iris priority), Bright, EV compensation, Slow

 AE

Gain

Auto

White balance

Auto/Manual

Shutter speed

Auto

Backlight compensation

Backlight compensation/strong light inhibition

User presetting bit

20 sets

Image rotation

180°, Horizontal/Vertical mirror image

OSD

Yes

Camera Object Tracking
